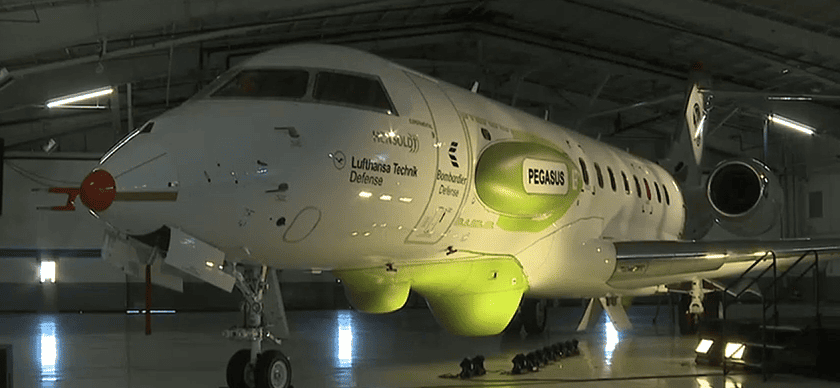

Germany’s PEGASUS program has moved from drawings and component testing to a visible fleet in flight-test, and the first aircraft now shows the full external layout of its signals intelligence fit. The Luftwaffe’s new platform is based on the Bombardier Global 6000 business jet and is intended to restore a dedicated airborne SIGINT capacity that Germany has lacked since the Breguet Atlantic left service.
Spotters in the United States photographed the first PEGASUS aircraft over Texas after modification work in North America. That jet made its maiden flight from Bombardier’s Wichita site on 23 October 2024 and remains in a combined structural and systems test campaign led by Bombardier Defense and Lufthansa Technik Defense. According to industry sources, the current plan still points to three aircraft in the initial batch, with a follow-on decision expected once the first example completes its trials.
PEGASUS Airframe Changes On The Bombardier Global 6000
The PEGASUS airframe keeps the basic Global 6000 dimensions, with a length of about 30 meters, wingspan just under 29 meters and a maximum take-off weight in the mid forty ton range. Two Rolls-Royce BR710A2-20 engines give a cruise speed near 900 kilometers per hour and allow the jet to work at altitudes above 15,000 meters, which is important for stand-off surveillance.
New structures on the fuselage and tail give space for the mission antennas. On each side of the cabin sits a long oval fairing aligned with the operator area inside the jet. Under the belly runs a large canoe with distinct fore and aft bulges that house wide-aperture antenna arrays and parts of the receiver system. Smaller panels near the fin tip and under the wings mark likely positions for high-frequency, satellite communications and auxiliary receivers.
Reinforced frames carry the fuselage fairings and the lower canoe. Extra electrical generation capacity and cooling feed the racks of mission electronics in the cabin. Officials confirm that the handling impact of these additions stayed within Bombardier’s usual margins for special-mission aircraft, so basic flight behavior remains close to a standard Global 6000.
Inside, Lufthansa Technik Defense lays out a mission cabin with multiple side-facing consoles, server cabinets and communications bays. The available cabin length and width give room for several operators, rest seats and a small galley. That combination supports long-duration sorties with a small flight crew and a rotating team of specialists at the consoles.
Kalætron Integral Sensors And Mission Systems On PEGASUS
Hensoldt’s Kalætron Integral sensor suite forms the main mission system for PEGASUS. Official material describes continuous frequency coverage from below 30 megahertz to about 40 gigahertz, aimed at both classic analog emitters and modern agile digital signals. The system intercepts radar emissions, missile guidance signals and military communications, then sorts and classifies them for the crew.
Conformal antenna arrays in the side fairings, lower canoe and tail area combine to give full azimuth coverage while the aircraft cruises at high altitude. Company data points to detection ranges on the order of 250 miles against some emitters when PEGASUS operates near its ceiling, which allows collection outside the engagement envelopes of many ground-based air defense systems. That stand-off margin matters once the aircraft works near contested regions.
Wideband digital receivers and phased-array techniques support simultaneous surveillance of multiple frequency bands. According to industry sources, the system can work against dense electromagnetic environments where radars hop across frequencies and communications nets use complex waveforms. This demands heavy onboard processing power and large storage capacity for raw and processed data.
Machine-learning tools and other advanced algorithms support the operators by screening intercepted signals, matching them against existing libraries and flagging items that look new or unusual. Direction-finding and time-difference-of-arrival methods then provide emitter locations with high accuracy in favorable geometries. Mission crews sit at multi-screen consoles where they confirm automatic classifications, adjust sensor tasking and build an electronic order of battle for supported headquarters and units.
High-capacity servers on board store collected data for later exploitation, while secure line-of-sight links and satellite communications send near real-time reports into national and NATO networks. Defense officials confirm that PEGASUS will exchange information with other German platforms, including Eurofighter EK, future F-35A squadrons and ground-based air-defense units, so that each force receives updated locations of radars and command nodes rather than working from aging intelligence.
From Euro Hawk To PEGASUS Program And Fleet Plans
Germany’s earlier Breguet Atlantic SIGINT aircraft, used mainly by the Navy over the Baltic and other waters, left service in 2010. To replace it, Berlin first selected the RQ-4E Euro Hawk, a variant of the Global Hawk unmanned aircraft fitted with an Airbus-developed ISIS sensor package. The program ran into certification problems inside European civil airspace and suffered from cost growth. Only one airframe flew before authorities cancelled the effort in 2013.
The Ministry of Defense then examined the U.S. Navy’s MQ-4C Triton as a possible alternative. That path did not move to procurement, and planning shifted toward a crewed aircraft with a clearer route to civil certification over Europe. The Global 6000 business jet family already had experience in government and special-mission roles, which made it a natural candidate.
In June 2021, the Bundestag’s defense committee approved PEGASUS with funding a little over one and a half billion euros. Hensoldt took responsibility for the Kalætron Integral mission suite, while Lufthansa Technik Defense became prime contractor on the airframe side. Bombardier Defense supplies the green Global 6000 jets, which then go through modification and integration activities in Hamburg.
By late 2023, the program had passed critical design review for the mission system and its integration into the aircraft. Soon after, the first PEGASUS rolled out with its full set of fairings and began flight tests from Wichita. According to industry sources, those sorties focused first on basic handling and systems checks before moving into calibration of the antenna layout and evaluation of electromagnetic performance.
Current plans foresee three PEGASUS aircraft delivered between 2026 and 2028, reaching their target operational readiness around 2027 once the ground segment and training are in place. The type is slated to serve with Tactical Air Wing 51 “Immelmann” at Schleswig, a unit already familiar with electronic missions through its Tornado ECR experience.
Fleet growth is already under discussion. Public reporting in Germany has noted work on a follow-on order that would bring the total to at least six aircraft, possibly more if budgets permit. Jürgen Halder, vice-president of airborne SIGINT at Hensoldt, told reporters last year: “If you look at the current geopolitical situation, even though any one aircraft can persistently monitor a vast area, there are unfortunately too many hot spots globally. So, we expect an additional rise [in aircraft numbers] to be coming eventually.” In the same context he added that “three aircraft are not sufficient, especially if you consider that the Euro Hawk program had already included much higher numbers of aircraft.”
Business Jet Intelligence Aircraft In German And Allied Service
The PEGASUS fleet joins other German platforms with advanced sensing roles. The Navy is receiving eight P-8A Poseidon maritime patrol aircraft, which carry an electronic-support measures suite to detect and geolocate hostile radars and other emitters over sea and coastal regions. Those aircraft focus on anti-submarine and maritime missions, while PEGASUS concentrates on wide-area electromagnetic reconnaissance from high altitude.
Abroad, the Global 6000 and its Global 6500 derivative support several major programs. Saab’s GlobalEye airborne early warning and control system mounts its Erieye ER radar and other payloads on a Global-series airframe and is already in service with the United Arab Emirates, with Sweden now a customer as well. South Korea selected a Global 6500 solution for its next airborne early warning and control aircraft in cooperation with L3Harris and other partners. The U.S. Air Force E-11A Battlefield Airborne Communications Node fleet also uses Global 6000 jets for its complex gateway payload, and the U.S. Army’s HADES deep-sensing aircraft rely on the Global 6500 for range and altitude.
Our analysis shows that PEGASUS fits into this broader pattern of business-jet-based intelligence, surveillance and reconnaissance aircraft. Users accept lower survivability in heavily defended airspace in exchange for long endurance, moderate operating costs and the ability to use standard civil airports and infrastructure. Concerns remain over how any crewed business jet would fare near a peer adversary with layered long-range air defenses. These aircraft must rely on careful route planning, escorts where necessary and close coordination with suppression-of-enemy-air-defense assets.
At the same time, platforms like PEGASUS still give a useful combination of reach, persistence and national control over sensitive intelligence gathering. They can watch radar networks, communications grids and command nodes over large areas without the political and technical hurdles that come with some unmanned or space-based systems. In that role, Germany’s new aircraft fill a long-standing gap and tie the Luftwaffe closer to allied trends in airborne electronic intelligence.
