Beijing announced the destroyer Tongchuan on May 31 without saying when it entered service. Open-source trackers had already counted 35 ships of the class in February. A close look at the newest 052D, and at the four different numbers that keep getting treated as one.
Chinese state media introduced the People’s Liberation Army Navy’s newest Type 052D guided-missile destroyer, Tongchuan, hull number 177, on May 31, 2026. The announcement by China National Radio, drawn from CCTV’s noon military program, said the ship had performed well in exercises since entering service and that its crew had just brought news of the commissioning to the ship’s namesake city in Shaanxi province. It did not say when the ship was commissioned.
Western coverage that followed in early June called Tongchuan the 35th ship of its class, and on June 2 China Daily put the class total at 35 as well. But open-source trackers had reached the same figure months earlier. In February, Zona Militar reported a fleet of at least 35 Type 052Ds and listed Tongchuan among ships reported to have been commissioned between late 2025 and early 2026. If that count was accurate, what changed in late May was not the number of ships in service but the official acknowledgment of one of them.
That distinction matters because the 052D story is usually told through numbers: 35 destroyers of one class, 45 of the latest generation, shipbuilding capacity about 230 times that of the United States. Each of those figures measures something different. So this profile starts with the ship itself, and with what is and is not officially known about it.
Tongchuan (177) at a glance
- Name, hull
- 铜川 Tongchuan, hull 177, named for the city in Shaanxi province — official
- Class
- Type 052D guided-missile destroyer, U.S. designation Luyang III per CRS — official. Batch labels such as “052DL” or “052DM” are informal — reported
- Announced
- May 31, 2026, via CCTV and China National Radio — official
- Commissioned
- Date not given. Open-source trackers placed it between late 2025 and early 2026 — not disclosed
- Fleet
- South Sea Fleet — official
- Displacement
- Nearly 8,000 metric tons full load, which China Daily calls “believed” — reported
- Changes from early 052Ds
- Longer hull, greater firepower, upgraded radar, capacity for a larger helicopter, per observers cited by China Daily — reported
- Armament
- One 130 mm gun, two close-in weapon systems and “dozens” of anti-aircraft and anti-ship missiles — official. 64 vertical launch cells on the original design, up from 48 on the Type 052C; later ships reported to retain 64 — reported
- Radar

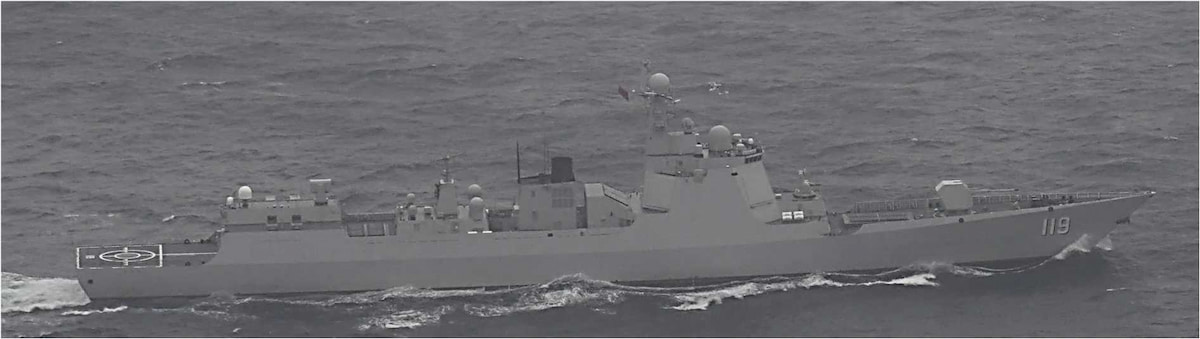

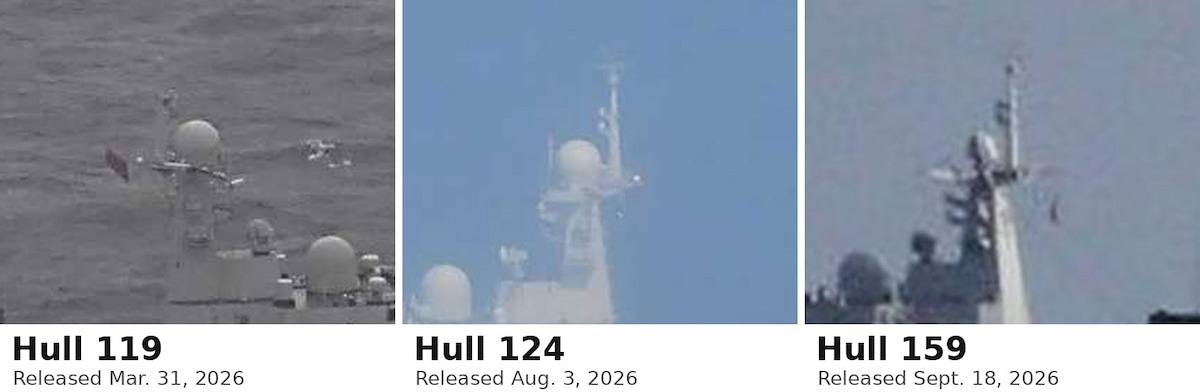

- Phased-array radar — official. Recent ships such as Weinan carry a dual-face radar in place of the earlier domed mast radar, assessed by a Chinese commentator as likely a rotating AESA — reported
- Builder, launch
- Not officially stated. The class is built at Jiangnan and Dalian — not disclosed
- Class in service
- 35 Type 052Ds commissioned since Kunming in March 2014 — official
What is new on the late-production ships
The Type 052D has been built in successive batches, each with incremental changes. China Daily, citing observers, describes Tongchuan and other recent builds as having a longer hull, greater firepower, upgraded radars and room for a larger helicopter than earlier 052Ds. A year earlier, Global Times reported that the destroyer Weinan had appeared in official imagery with a dual-face radar resembling the one on the Type 054B frigate, replacing the spherical dome on the main mast of earlier ships. A Chinese military commentator quoted in that report assessed it as likely a dual-face rotating active electronically scanned array; that characterization is his, not the PLA’s. The same report noted that CCTV had earlier shown a modified version with an aft-mounted radar for extended early warning, a larger helicopter deck and an upgraded vertical launch system.
Much of the English-language coverage of Tongchuan did not reflect those changes. Zona Militar’s June 3 report gave dimensions of about 156 meters and roughly 7,000 tons full load, figures for the original ship rather than the stretched later builds. Defence Security Asia described the ship as a Type 052DL with an H/LJQ-518 radar, built at Jiangnan and launched in December 2024, without citing a source for the yard or the date. None of those details appears in Chinese official statements.
Commissioned when? Beijing does not always say
Unlike the U.S. Navy, which announces ship deliveries with exact dates, the PLA Navy typically discloses new ships after they enter service, sometimes with a month and sometimes with no date at all. The three Type 052Ds disclosed so far in 2026 show the range.
| Ship | Entered service | Disclosed |
|---|---|---|
| Loudi (176) | November 2025, stated officially by China Military Online | January 2, 2026 |
| Ganzi (128) | Not stated officially; December 2025, according to open-source reporting cited by Zona Militar | February 9, 2026, by the Ministry of National Defense, as “newly commissioned” |
| Tongchuan (177) | Not stated officially; late 2025 to early 2026, according to open-source reporting | May 31, 2026 |
That lag explains why tallies of “ships commissioned in 2026” disagree. Military Watch Magazine, republished by the Naval Institute of Australia, called Tongchuan the third destroyer of its class and the fifth destroyer overall commissioned in 2026. A tracker quoted by Zona Militar called it the second destroyer commissioned that year. Both are counting disclosures, and at least two of the three ships disclosed in 2026 appear to have entered service in 2025. It also means that stories dated June 3, which described the ship as newly commissioned, were reporting a disclosure rather than a commissioning date.
Four numbers, four measures
The numbers that frame the 052D story come from different sources and measure different things.
| Figure | What it counts | Source |
|---|---|---|
| 35 | Type 052Ds the PLA Navy has commissioned, as stated by state media. A count of ships declared in service, not of ships built | China Daily, June 2, 2026 |
| About 40 | Type 052D hulls produced. Naval News put total output as approaching 40 hulls at the start of 2026; later reports describe four more ships in sea trials | Naval News; Zona Militar |
| 45 | “Latest-generation” destroyers: 35 Type 052Ds plus 10 Type 055s, in one count. The Type 055 figure is contested: eight first-batch ships are in service, and six second-batch hulls have been launched, with how many have entered service unconfirmed | Military Watch Magazine; Naval News |
| About 230 times | China’s shipbuilding capacity relative to the U.S., in gross tons per unit of time. A measure dominated by commercial cargo ships, not warships | U.S. Navy briefing slide, as described by CRS |
The last figure is the one most often stretched. The Congressional Research Service notes that the Navy slide behind it appears to relate primarily to capacity for building relatively simple commercial cargo ships, and that the effective ratio for warships with complex combat systems may be far less than 230:1 (August 2024 edition), though possibly still considerably higher than one to one. A Type 052D count says nothing about gross tonnage, and gross tonnage says little about destroyers.
The official American count is also thinner than it used to be. Annual Pentagon reports to Congress once listed PLA Navy cruisers and destroyers by number; the last such figures compiled by CRS, for 2023, were 8 cruisers and 42 destroyers. The 2025 edition, released December 23, 2025, gives no destroyer count at all, stating only that China has sufficient capacity to produce large numbers of submarines, surface combatants, and auxiliary and amphibious ships. Open-source tallies and Chinese announcements now fill that gap.
Even so, the trend is clear. In October 2020, Navy data provided to CRS projected that China would field 52 cruisers and destroyers in 2025 and 60 in 2030. The two newest classes alone, 35 Type 052Ds and eight to ten Type 055s, now account for 43 to 45 ships, before any older destroyers are counted.
For comparison

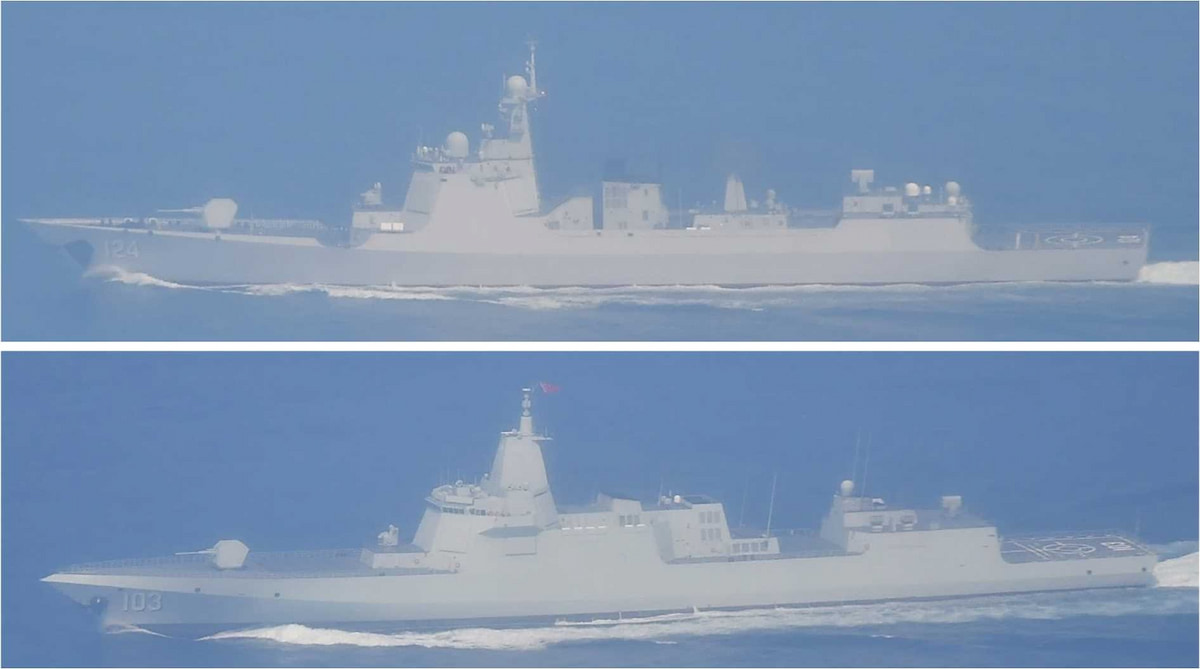

Set beside its counterparts, the late-production Type 052D sits between the larger Chinese Type 055 and the U.S. Navy’s Arleigh Burke class.
| Type 052D (late) | Type 055 | DDG-51 Flight IIA/III | |
|---|---|---|---|
| Full-load displacement | Nearly 8,000 t, reported | 12,000–13,000 t, reported | Up to 9,700 long tons (class range 8,230–9,700) |
| Vertical launch cells | 64 on the original design; reported unchanged on later ships | Not stated in sources used here | 96 (Flight III) |
| Helicopters | Late ships can carry a larger helicopter | — | Two MH-60R |
| How entry into service is announced | After the fact, sometimes undated | — | Delivery announced with exact date |
The pace comparison needs the same care. China Daily’s figures imply 35 Type 052Ds commissioned over roughly 12 years since March 2014, about three a year, with Type 055s joining from 2020. On the U.S. side, CRS reports that since FY2016 the Navy has procured DDG-51s at two or three a year but taken delivery of fewer than two a year on average, with 75 delivered as of October 1, 2025. The two measures are not identical, commissioning on one side and delivery on the other, but the difference in rate is large enough that the choice of milestone does not change its direction. The same week Tongchuan was announced, the U.S. Navy accepted delivery of the future USS Patrick Gallagher (DDG 127), the last Flight IIA ship, on May 28, 2026, more than two months ahead of schedule, with the date stated in the release.
What comes next
The Type 052D production run appears to be nearing its end. Naval News reported in January that total output was approaching 40 hulls, and Zona Militar reported in July that hulls 37 through 40 were in sea trials, with no further orders expected as Chinese yards shift to new destroyer designs. If those reports hold, the next several 052D announcements will follow the same pattern as Tongchuan: ships that observers have already counted, acknowledged by Beijing on its own schedule. The more telling numbers for the next phase will be launches of whatever replaces the 052D, and how many second-batch Type 055s China confirms in service.
Sources
Primary and official documents
- China National Radio — 铜川舰官兵赴铜川和孩子们过”六一”国际儿童节 [Tongchuan crew visits Tongchuan for Children’s Day], May 31, 2026, from the CCTV-7 noon military program
- Zhao Lei — PLA Navy commissions destroyer Tongchuan, China Daily, June 2, 2026
- China Military Online — New Type 052D Destroyer Loudi Equipped with Upgraded Systems, January 2, 2026
- Ministry of National Defense of the PRC — Latest Type 052D Destroyer Commissioned to PLA Navy, February 9, 2026
- People’s Daily Online — China’s 052D destroyer equipped with new vertical launching system, September 5, 2013, GlobalSecurity.org mirror
- Liu Xuanzun and Liang Rui — China’s newly modified version of Type 052D destroyer joins training exercises, Global Times, June 2, 2025, GlobalSecurity.org mirror
- Office of the Secretary of War — Military and Security Developments Involving the People’s Republic of China 2025 (PDF), posted December 23, 2025
- Ronald O’Rourke — China Naval Modernization: Implications for U.S. Navy Capabilities, CRS RL33153, updated April 24, 2025: Tables 1 and 3
- Ronald O’Rourke — China Naval Modernization, CRS RL33153, updated August 16, 2024: Shipbuilding Capacity section
- Ronald O’Rourke — Navy DDG-51 and DDG-1000 Destroyer Programs, CRS RL32109, updated December 5, 2025
- U.S. Navy — Destroyers (DDG 51) fact file, last updated May 9, 2024
- Department of Defense — Selected Acquisition Report: DDG 51 Arleigh Burke Class Guided Missile Destroyer (PDF), December 2022, cleared for open publication May 4, 2023
- U.S. Navy — Navy Accepts Accelerated Delivery of Future USS Patrick Gallagher, June 1, 2026
- Japan Joint Staff — press releases of March 31, August 3 and September 18, 2026 (PDF), source of the photographs, used under the Joint Staff terms of use (compatible with CC BY 4.0). Photos cropped by defense-aerospace.com; the foremast comparison was created by cropping and enlarging them.
Trade press and analysis
- Alex Luck — Reviewing the Chinese Navy in 2025, Part I: The surface fleet, Naval News, January 3, 2026
- Zona Militar — With the latest deliveries, the Chinese Navy would now have a fleet of 35 Type 052D destroyers in service, February 5, 2026
- Zona Militar — China commissions another Type 052D destroyer as PLAN continues fleet expansion, June 3, 2026
- Zona Militar — China’s Navy set to conclude Type 052D destroyer production after 40 ships, July 25, 2026
- Military Watch Magazine — Chinese Navy’s 45 late-gen destroyers, republished by the Naval Institute of Australia, page undated; June 3, 2026 per search listing
- Defence Security Asia — China Deploys 35th Type 052D Destroyer to South China Sea, June 3, 2026
